DMM4-MR116 Reverse Circulation (RC) Hammers
Brief specifications

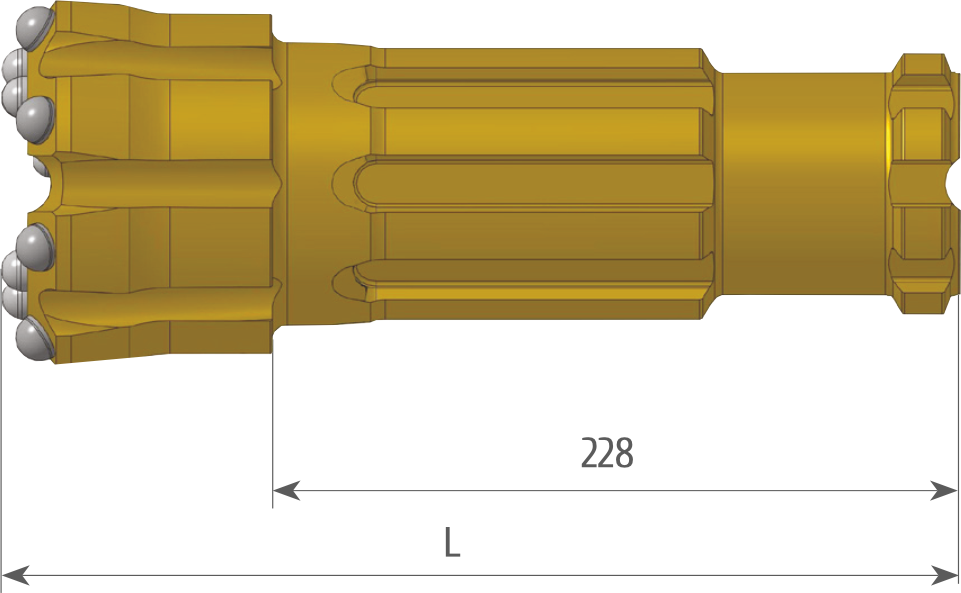

- Recommended drill bit diameter, mm 121…127
- Shank type MR116
- Operating air pressure, bar 24
- Air flow rate, m3/min 25
- Diameter, mm 116
- Length, mm 1187
- Weight, kg 74
- Connection threadMetzke 4”

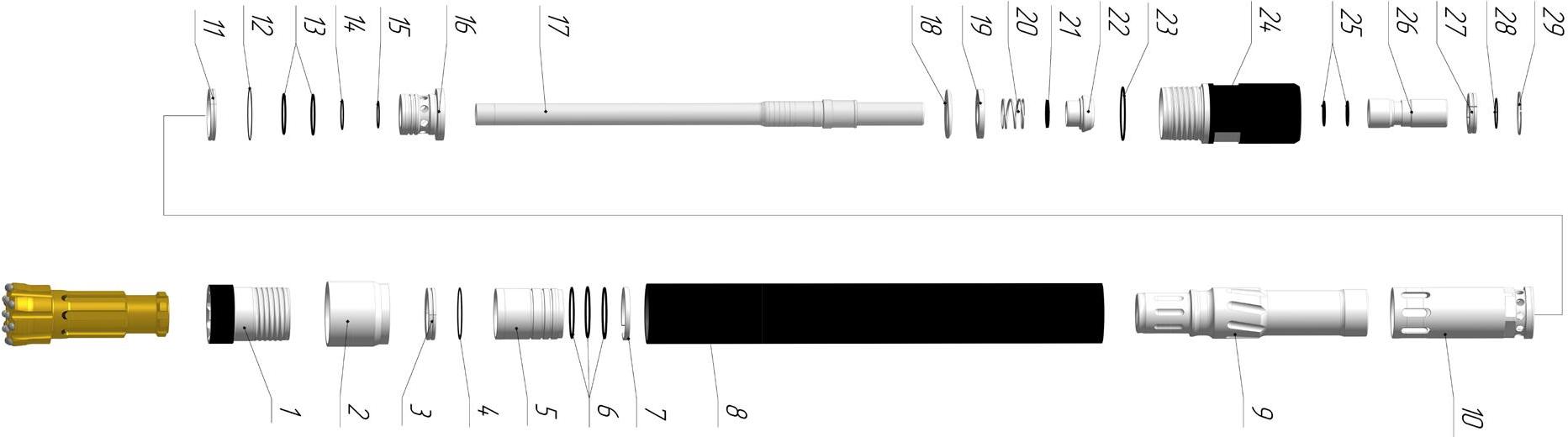

- Service kitMH 872.60 (includes items: 1, 4, 6, 8, 12-15, 20-25, 28, 29)
Hammer RC DMM4-MR116 MH 872.00
PART NUMBER: MH 872.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Recommended drill bit diameter, mm 121…127
- Shank type MR116
- Operating air pressure, bar 24
- Air flow rate, m3/min 25
- Diameter, mm 116
- Length, mm 1187
- Weight, kg 74
- Connection thread Remet 4”
- Service kitMH 872.60 (includes items: 1, 4, 6, 8, 12-15, 20-25, 28, 29)
Hammer RC DMM4-MR116 MH 1470.00
PART NUMBER: MH 1470.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Recommended drill bit diameter, mm 137…146
- Shank type MR116
- Operating air pressure, bar 24
- Air flow rate, m3/min 25
- Diameter, mm 123
- Length, mm 1187
- Weight, kg 85
- Connection thread Remet 4.5”
- Service kitMH 872.60 (includes items: 1, 4, 6, 8, 12-15, 20-25, 28, 29)
Hammer RC DMM4-MR116 MH 1471.00
PART NUMBER: MH 1471.00
Check with the manager for the information about availability and delivery terms after submitting your application
Description
