Drilling bit MR116
Brief specifications
- Image
- Name KNSH-124 MR116 MH 864.00
- Nominal drill bit diameter, mm 124
- Gauge angle, deg. 35

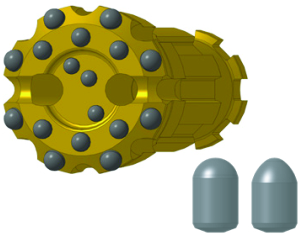

- Carbide (outer) Hemispherical 8 × Ø16
- Carbide (front) Hemispherical 9 × Ø16, semi-ballistic 3 × Ø12
- Flushing holes 2

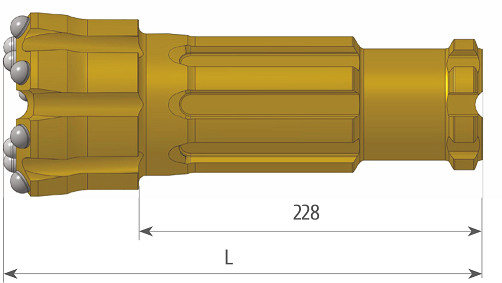

- Length L, mm 317
- Weight, kg 14.0
KNSH-124 MR116 MH 864.00
PART NUMBER: MH 864.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-127 MR116 MH 865.00
- Nominal drill bit diameter, mm 127
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 8 × Ø16
- Carbide (front) Hemispherical 6 × Ø14, semi-ballistic 3 × Ø12
- Flushing holes 2
- Length L, mm 317
- Weight, kg 14.1
KNSH-127 MR116 MH 865.00
PART NUMBER: MH 865.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-133 MR116 MH 1451.00
- Nominal drill bit diameter, mm 133
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 8 × Ø16
- Carbide (front) Hemispherical 6 × Ø14, semi-ballistic 4 × Ø12
- Flushing holes 2
- Length L, mm 322
- Weight, kg 14,7
KNSH-133 MR116 MH 1451.00
PART NUMBER: MH 1451.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-136 MR116 MH 1454.00
- Nominal drill bit diameter, mm 136
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 8 × Ø16
- Carbide (front) Hemispherical 6 × Ø14, semi-ballistic 4 × Ø12
- Flushing holes 2
- Length L, mm 322
- Weight, kg 14,9
KNSH-136 MR116 MH 1454.00
PART NUMBER: MH 1454.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-140 MR116 MH 1455.00
- Nominal drill bit diameter, mm 140
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 8 × Ø16
- Carbide (front) Hemispherical 6 × Ø14, semi-ballistic 4 × Ø12
- Flushing holes 2
- Length L, mm 322
- Weight, kg 14,3
KNSH-140 MR116 MH 1455.00
PART NUMBER: MH 1455.00
Check with the manager for the information about availability and delivery terms after submitting your application
