Drilling bit MR132
Brief specifications

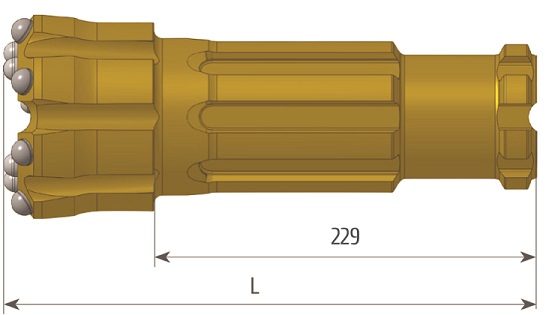

- Image
- NameKNSH-137 MR132 MH 895.00
- Nominal diameter of the bit, mm.137
- Periphery inclination angle, deg.35
- Carbide (periphery)hemisphere 8xØ16
- Carbide (front)hemisphere 6xØ16, hemisphere 4xØ12
- Flushing holes2
- Length, mm.318
- Weight, kg.18
KNSH-137 MR132 MH 895.00
PART NUMBER: MH 895.00
Check with the manager for the information about availability and delivery terms after submitting your application
- NameKNSH-140 MR132 MH 1457.00
- Nominal diameter of the bit, mm.140
- Periphery inclination angle, deg.35
- Carbide (periphery)hemisphere 8xØ16
- Carbide (front)hemisphere 6xØ16, hemisphere 6xØ12
- Flushing holes2
- Length, mm.318
- Weight, kg.18,2
KNSH-140 MR132 MH 1457.00
PART NUMBER: MH 1457.00
Check with the manager for the information about availability and delivery terms after submitting your application
- NameKNSH-146 MR132 MH 1456.00
- Nominal diameter of the bit, mm.146
- Periphery inclination angle, deg.35
- Carbide (periphery)hemisphere 8xØ16
- Carbide (front)hemisphere 6xØ16, hemisphere 6xØ12
- Flushing holes2
- Length, mm.318
- Weight, kg.18
KNSH-146 MR132 MH 1456.00
PART NUMBER: MH 1456.00
Check with the manager for the information about availability and delivery terms after submitting your application
