Stand for loosening down-the-hole pneumatic hammers
Brief specifications
- Рydraulic cylinder20
- Effort, t.20
- Stroke, mm.200
- Pressure, mPa.75
- Weight, kg.10
- Pump1500
- Cylinder volume, cm3.1500
- Pressure, mPa.70
- Effort, t.20
- Weight, kg.11,5
- Chain pipe vice2-8,5 (50,8-215,9)
- Ø of captured pipes, inch (mm.)2-8,5 (50,8-215,9)
- Working width, inches (mm.)5,25 (133,35)
- Максимальная рабочая нагрузка, кН*м.18,97
- Weight, kg.28,82
- Эксплуатационные характеристики стендаот -25 до +40
- Ambient temperature, °Cfrom -25 up to +40
- Hydraulic oilAll-season Hydraulic Oil Thickened
- Hammer size range, inch (mm.)from 4 up to 8,5 (100-216)
- Overall dimensions (length, width, height), mm.1160x750x1005
- Weight, kg.163
- Maximum torque, Nm.100x1000
- Hydraulic pressure, MPa.75
- Untwisting force, t.20

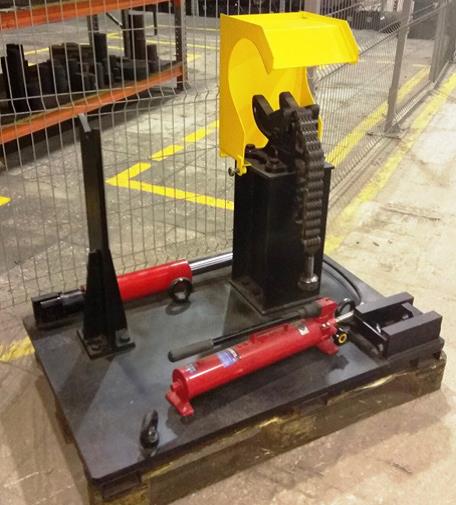

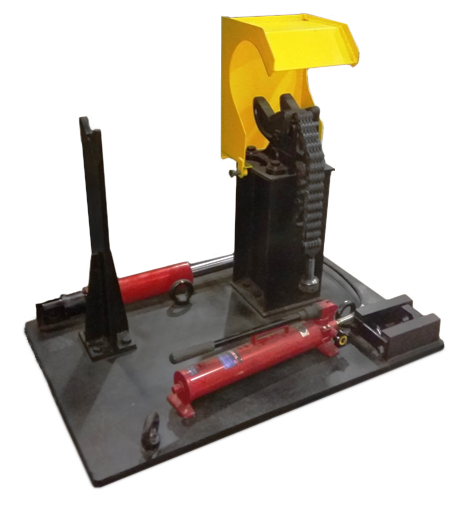

Stand for loosening down-the-hole pneumatic hammers
PART NUMBER: B416.00.000
Check with the manager for the information about availability and delivery terms after submitting your application
Description
The threaded connections of the driver chuck and the upper sub can become severely tightened during drilling. It's easier to loosen the down-the-hole hammer directly on the drill rig, but if the threaded connections won't loosen or are jammed, a down-the-hole hammer disassembly stand (hereinafter referred to as "DTH") is the best solution. This portable yet powerful DTH hammer disassembly stand fits comfortably in a workshop or container and is used to loosen DTH hammer threads ranging from 4" to 8".
