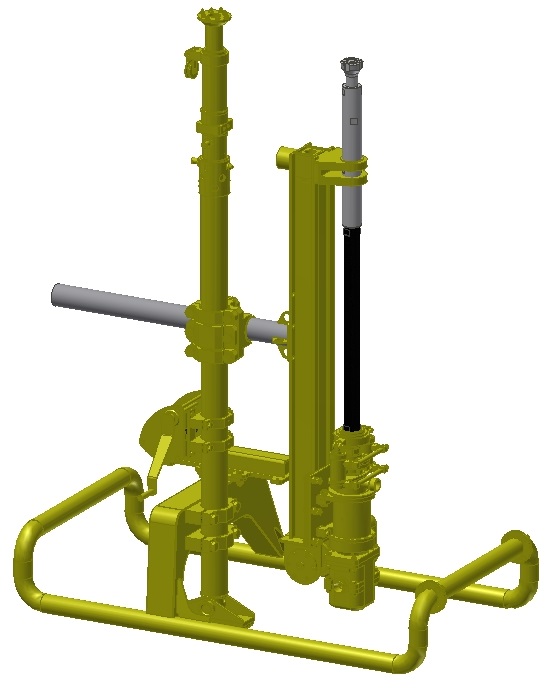

BP-85 skid mounted drill

Brief specifications

  • Drilling diameter, mm85; 105; 110
  • Drilling depth, mdown to 50
  • Drilling direction: vertical fan360°
  • Drilling direction: cone fanFrom +90° to +65°
  • Drilling direction: minimum radius for vertical drilling of bunch holes, m0.6
  • Drilling direction: minimum radius for vertical drill hole cleaning, m0.45
  • Drilling direction: maximum radius for vertical drill hole cleaning, m1.2
  • Minimum drift height (depending on the configuration), m:2.0 (2.7)
  • Maximum drift height (depending on the configuration), m:2.7 (3.5)
BP-85 skid mounted drill
PART NUMBER:
To order list
Check with the manager for the information about availability and delivery terms after submitting your application

Description

The BP-85 drilling rig is designed for drilling blast wells with a diameter of 85-110 mm and a depth of up to 50 m. The use of various methods of fastening the machine to the spacer column allows you to significantly expand the scope of the machine.
