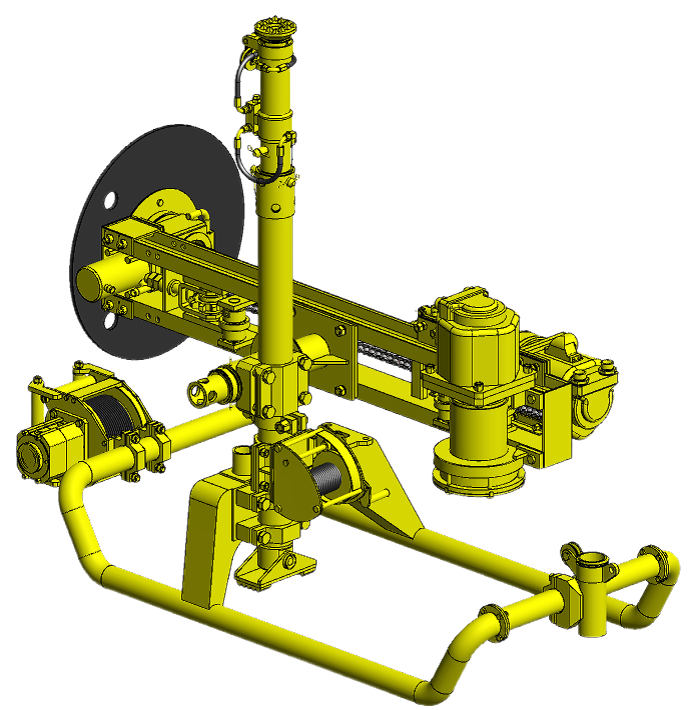

BP-100N drilling rig
Brief specifications
- Minimum drift size (width × height), m:2.0 × 2.0
- Maximum drift size (width × height), m:2.8 × 2.8
- Drilling diameter, mm85, 105, 110, 130
- Hole reaming diameter, mm168
- Drilling depth, m, down to80
- Drill string diameter, mm76
- Drilling direction: full fan, vertical holes parallel to the axis of the jack column0…360°
- Operating compressed air pressure, MPa (kgf/cm2)0.5 (5)
- Air flow rate (without hammer), m3/min13
- Water line operating pressure, MPa (kgf/cm2)1.0…1.2 (10…12)
- Water flow rate, l/min10–18
- Total rig weight (without the rods and spare parts), kg600
BP-100N drilling rig
PART NUMBER:
Check with the manager for the information about availability and delivery terms after submitting your application
Description
The BP-100N drilling machine is designed for drilling explosive wells with a diameter of 85, 105, 110, 130 mm with submersible pneumatic hammers during underground mining of minerals in rocks and ores with a strength coefficient f = 6 ...20 on the scale of Prof. M.M. Protodiakonov.
