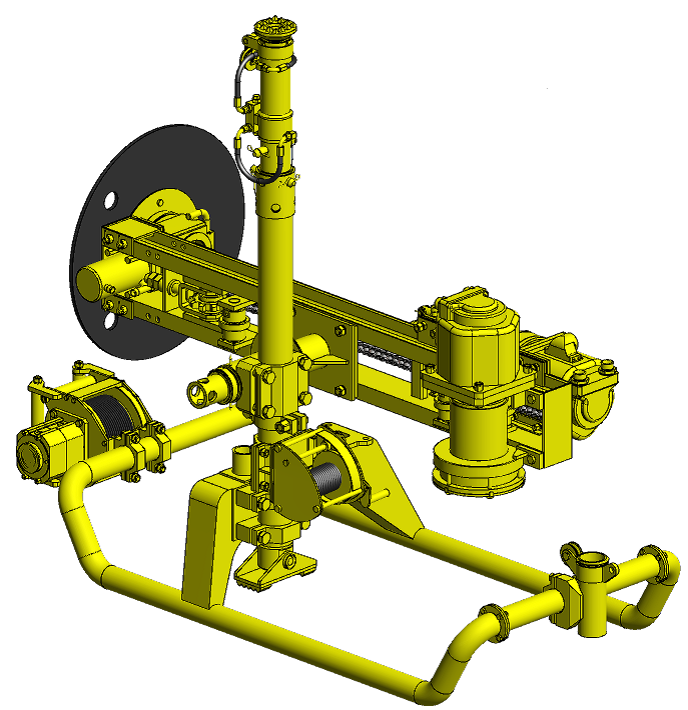

BP-100M drilling rig
Brief specifications
- Minimum drift size (width × height), m:2.2 × 2.2
- Maximum drift size (width × height), m:2.8 × 2.8
- Hole reaming diameter, mm160... 250
- Drill string diameter, mm76; 89
- Drilling direction: full fan, vertical holes parallel to the axis of the jack column0…360°
- Air flow rate (rotation, feed; Р=4-6 bar), m3/min12...14
- Water line operating pressure, MPa (kgf/cm2)0.6…1.2 (6…12)
- Water flow rate, l/min10...30
- Total rig weight (without the rods, spare parts and water pump), kg810
BP-100M drilling rig
PART NUMBER:
Check with the manager for the information about availability and delivery terms after submitting your application
Description
The BP-100M (BP-100) machine is designed for drilling explosive wells in the underground mining of minerals and auxiliary wells (ventilation, laying for laying cables, pipelines, etc.) with a diameter of 105-160 mm in rocks with a strength coefficient f = 6 ...20 on the M.M. Protodiakonov scale with submersible pneumatic hammers.
