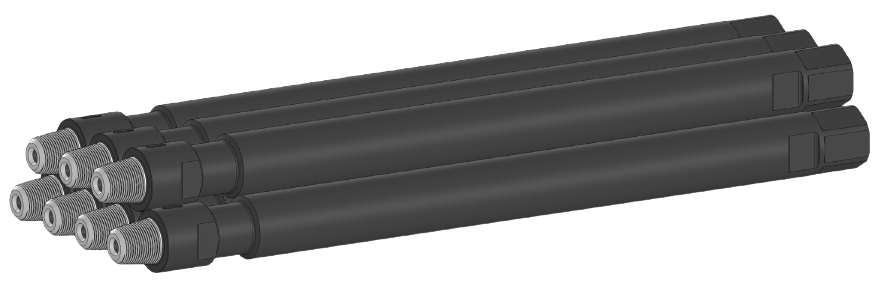

Drill rods for DML, DM, PV (Epiroc) drilling rigs
Brief specifications
- Diameter, mm 89
- Length, mm 9144
- Pipe wall thickness, mm 10
- Size across flats, mm 63,5
- Slot for wrench width, mm 89
- Connection thread 2 3/8" Api Reg
89-10-9144-A2 38 (Р.В.) MH 1617.00
PART NUMBER: MH 1667.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 89
- Length, mm 9144
- Pipe wall thickness, mm 14
- Size across flats, mm 63
- Slot for wrench width, mm 89
- Connection thread 2 3/8" Api Reg
89-14-9144-A2 38 (Р.В.) MH 1625.00
PART NUMBER: MH 1625.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 89
- Length, mm 9144
- Pipe wall thickness, mm 14
- Size across flats, mm 63
- Slot for wrench width, mm 89
- Connection thread 2 3/8" Api Reg
114-10-7620-B3 (Р.В.) MH 1636.00
PART NUMBER: MH 1636.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name 127-14-8100-В 3 1/2 (Р.В.) MH 1612.00
- Diameter, mm 127
- Length, mm 8100
- Pipe wall thickness, mm 14
- Size across flats, mm 89
- Slot for wrench width, mm 80
- Connection thread 3 1/2” BECO
- Weight, kg 336
127-14-8100-В 3 1/2 (Р.В.) MH 1612.00
PART NUMBER: MH 1612.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name 127-16-8100-В 3 1/2 (Р.В.) MH 1666.00
- Diameter, mm 127
- Length, mm 8100
- Pipe wall thickness, mm 16
- Size across flats, mm 89
- Slot for wrench width, mm 80
- Connection thread 3 1/2” BECO
127-16-8100-В 3 1/2 (Р.В.) MH 1666.00
PART NUMBER: MH 1666.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name 127-16-8100-В 3 1/2 (Р.В.) MH 1666.00
- Diameter, mm 127
- Length, mm 9144
- Pipe wall thickness, mm 10
- Size across flats, mm 89
- Slot for wrench width, mm 80
- Connection thread 3 1/2” BECO
- Weight, kg 336
127-10-9144-В 3 1/2 (Р.В.) MH 1663.00
PART NUMBER: MH 1663.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 127
- Length, mm 9144
- Pipe wall thickness, mm 14
- Size across flats, mm 89
- Slot for wrench width, mm 80
- Connection thread 3 1/2” BECO
- Weight, kg 376
127-14-9144-В 3 1/2 (Р.В.) MH 1611.00
PART NUMBER: MH 1611.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 127
- Length, mm 9144
- Pipe wall thickness, mm 16
- Size across flats, mm 89
- Slot for wrench width, mm 80
- Connection thread 3 1/2” BECO
127-16-9144-В 3 1/2 (Р.В.) MH 1656.00
PART NUMBER: MH 1656.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 127
- Length, mm 9144
- Pipe wall thickness, mm 20
- Size across flats, mm 89
- Slot for wrench width, mm 80
- Connection thread 3 1/2” BECO
- Weight, kg 492
127-20-9144-В 3 1/2 (Р.В.) MH 1600.00
PART NUMBER: MH 1600.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 140
- Length, mm 9144
- Pipe wall thickness, mm 16
- Size across flats, mm 114
- Slot for wrench width, mm 72
- Connection thread 3 1/2” BECO
140-16-9144-В 3 1/2 (Р.В.) MH 1600.00
PART NUMBER: MH 1654.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 140
- Length, mm 9144
- Pipe wall thickness, mm 20
- Size across flats, mm 114
- Slot for wrench width, mm 72
- Connection thread 3 1/2” BECO
- Weight, kg 573
140-20-9144-В 3 1/2 (Р.В.) MH 1613.00
PART NUMBER: MH 1613.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 140
- Length, mm 9144
- Pipe wall thickness, mm 20
- Size across flats, mm 114
- Slot for wrench width, mm 72
- Connection thread 3 1/2” BECO
- Weight, kg 573
140-20-9144-В 3 1/2 (Р.В.) MH 1603.00
PART NUMBER: MH 1603.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 140
- Length, mm 10660
- Pipe wall thickness, mm 20
- Size across flats, mm 114
- Slot for wrench width, mm 72
- Connection thread 3 1/2” BECO
140-20-10660-В 3 1/2 (Р.В.) MH 1679.00
PART NUMBER: MH 1679.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 159
- Length, mm 8100
- Pipe wall thickness, mm 20
- Size across flats, mm 114
- Slot for wrench width, mm 69
- Connection thread 4” BECO
159-20-8100-В 4 (Р.В.) MH 1637.00
PART NUMBER: MH 1637.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 159
- Length, mm 9144
- Pipe wall thickness, mm 20
- Size across flats, mm 114
- Slot for wrench width, mm 69
- Connection thread 4” BECO
159-20-9144-В 4 (Р.В.) MH 1629.00
PART NUMBER: MH 1629.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 178
- Length, mm 4500
- Pipe wall thickness, mm 25
- Size across flats, mm -
- Slot for wrench width, mm -
- Connection thread 4 1/2” BECO
178-25-4500-В 412 (Р.В.) MH 1682.00
PART NUMBER: MH 1682.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 178
- Length, mm 9144
- Pipe wall thickness, mm 20
- Size across flats, mm 127
- Slot for wrench width, mm 115
- Connection thread 4 1/2” BECO
- Weight, kg 913
178-20-9144-В 4 1/2 (Р.В.) MH 1604.00
PART NUMBER: MH 1604.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 178
- Length, mm 7620
- Pipe wall thickness, mm 25
- Size across flats, mm 146
- Slot for wrench width, mm 165
- Connection thread 4 1/2” BECO
178-20-7620-В 4 1/2 (Р.В.) MH 1681.00
PART NUMBER: MH 1681.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 178
- Length, mm 10668
- Pipe wall thickness, mm 20
- Size across flats, mm 146
- Slot for wrench width, mm 200
- Connection thread 4 1/2” BECO
178-20-10668-В 4 1/2 (Р.В.) MH 1646.00
PART NUMBER: MH 1646.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 178
- Length, mm 10668
- Pipe wall thickness, mm 20
- Size across flats, mm 146
- Slot for wrench width, mm 200
- Connection thread 4 1/2” BECO
178-20-12190-В 4 1/2 (Р.В.) MH 1680.00
PART NUMBER: MH 1680.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 194
- Length, mm 9144
- Pipe wall thickness, mm 20
- Size across flats, mm 152
- Slot for wrench width, mm 75
- Connection thread 5 1/4” BECO
194-20-9144-В 5 1/4 (Р.В.) MH 1678.00
PART NUMBER: MH 1678.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 194
- Length, mm 9144
- Pipe wall thickness, mm 25
- Size across flats, mm 109
- Slot for wrench width, mm 110
- Connection thread 5 1/4” BECO
- Weight, kg 950
194-25-9144-В 5 1/4 (Р.В.) MH 1618.00
PART NUMBER: MH 1618.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 194
- Length, mm 9144
- Pipe wall thickness, mm 25
- Size across flats, mm 109
- Slot for wrench width, mm 110
- Connection thread 5 1/4” BECO
- Weight, kg 950
194-16-9144-В 5 1/4 (Р.В.) MH 1662.00
PART NUMBER: MH 1662.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 194
- Length, mm 10668
- Pipe wall thickness, mm 16
- Size across flats, mm 171
- Slot for wrench width, mm 130
- Connection thread 5 1/4” BECO
194-16-10668-В 5 1/4 (Р.В.) MH 1664.00
PART NUMBER: MH 1664.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 194
- Length, mm 12190
- Pipe wall thickness, mm 25
- Size across flats, mm 171
- Slot for wrench width, mm 178
- Connection thread 5 1/4” BECO
- Weight, kg 1407
194-25-12190-В 5 1/4 (Р.В.) MH 1617.00
PART NUMBER: MH 1617.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 194
- Length, mm 12190
- Pipe wall thickness, mm 16
- Size across flats, mm 171
- Slot for wrench width, mm 178
- Connection thread 5 1/4” BECO
194-20-12190-В 5 1/4 (Р.В.) MH 1659.00
PART NUMBER: MH 1659.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 194
- Length, mm 10668
- Pipe wall thickness, mm 20
- Size across flats, mm 171
- Slot for wrench width, mm 180
- Connection thread 5 1/4” BECO
194-25-10668-В 5 1/4 (Р.В.) MH 1632.00
PART NUMBER: MH 1632.00
Check with the manager for the information about availability and delivery terms after submitting your application
