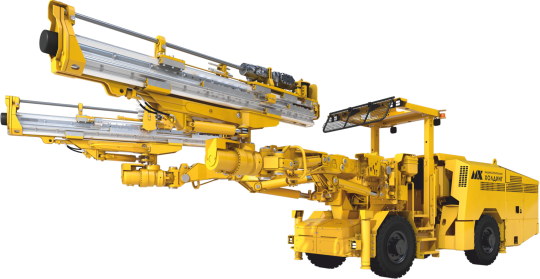

DF-C2 Underground Dual Boom Hydraulic Hammer Drilling Rig
Brief specifications
- Minimum drift size (width × height), м3.5 × 3.5
- Nominal borehole diameter, mm43...64
- Maximum climbing angle15°
- Maximum allowable sideways tilt angle5°
- Maximum travel speed, km/h16
- Rig weight, not more than, kg22,500
- Operating compressed air pressure, MPa (kgf/cm2)0.7 (7)
- Air flow rate (hydraulic rock drill) not more than, m3/min1.65
- Water line operating pressure, MPa (kgf/cm2)1.2…1.5 (12…15)
- Water flow rate (flushing), l/min100
DF-C2 Underground Dual Boom Hydraulic Hammer Drilling Rig
PART NUMBER: MH 755.00
Check with the manager for the information about availability and delivery terms after submitting your application
Description
The electrohydraulic drilling rig with two booms is designed for sinking workings and tunnels with a cross section of up to 49 m2. The use of a drilling rig with two booms increases the productivity of sinking operations. The DF-C2 drilling rig has the ability to install telescopic feeders for drilling holes under the anchorage of mine workings.
