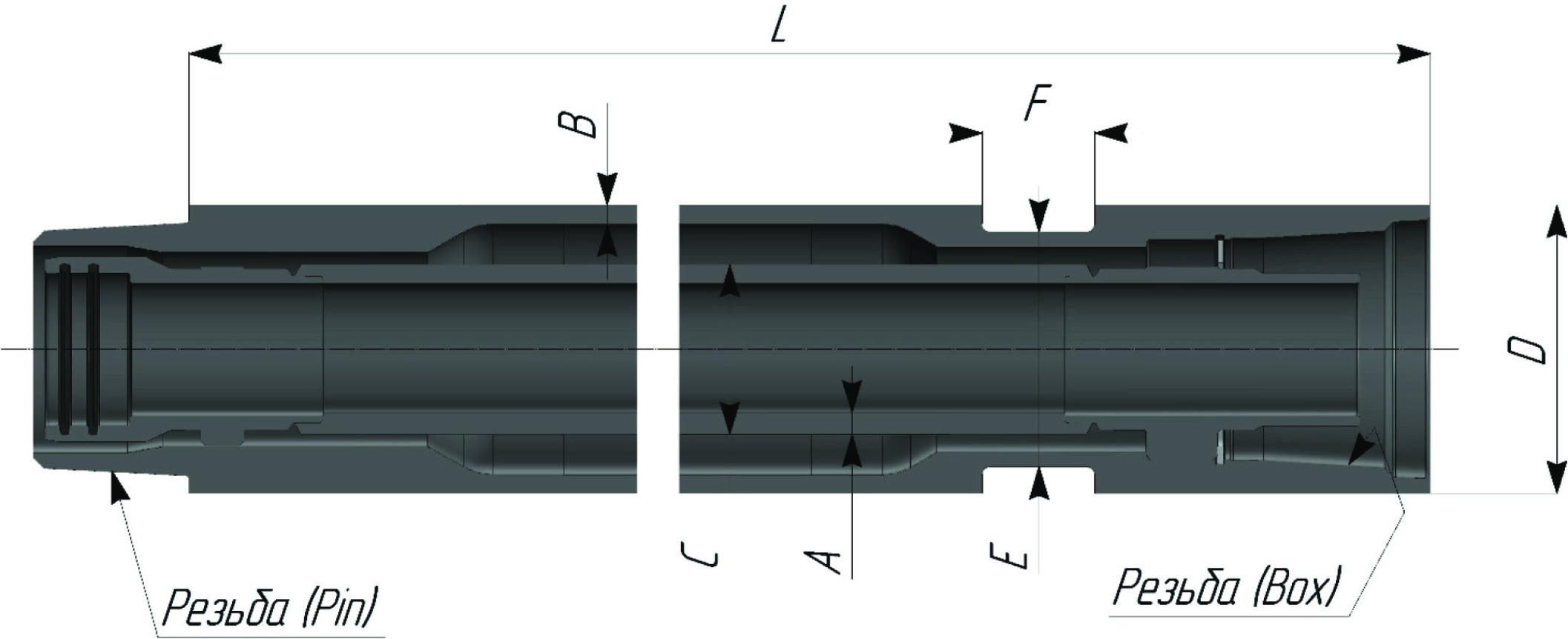

Dual tube drill rods for reverse circulation (RC) drilling
Brief specifications
- Name RC-D102×3000×М4 MH 1620.00
- Diameter D, mm 102
- Length L, mm 3000
- Pipe wall thickness B, mm 6.5
- Internal tube diameter C, mm 60
- Internal tube wall thickness A, mm 6.5
- Size across flats, mm 83
- Slot for wrench width, mm 40
- Connection thread 4” Metzke
- Inner tube assemblyMH 1620.20
RC-D102×3000×М4
PART NUMBER: MH 1620.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name RC-D114×6000×DR115 MH 1621.00
- Diameter D, mm 114
- Length L, mm 6000
- Pipe wall thickness B, mm 6,5
- Internal tube diameter C, mm 60
- Internal tube wall thickness A, mm 6,5
- Size across flats, mm 95
- Slot for wrench width, mm 50
- Connection thread DR115
- Inner tube assemblyMH 1621.20
RC-D114×6000×DR115
PART NUMBER: MH 1621.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name RC 102×3000×DR102 MH 1633.00
- Diameter D, mm 102
- Length L, mm 3000
- Pipe wall thickness B, mm 6,5
- Internal tube diameter C, mm 60
- Internal tube wall thickness A, mm 6,5
- Size across flats, mm 83
- Slot for wrench width, mm 40
- Connection thread DR102
- Inner tube assemblyMH 1633.20
RC 102×3000×DR102 MH 1633.00
PART NUMBER: MH 1633.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name RC 114×3000×М4,5 MH 1626.00
- Diameter D, mm 114
- Length L, mm 6000
- Pipe wall thickness B, mm 8
- Internal tube diameter C, mm 60
- Internal tube wall thickness A, mm 6,5
- Size across flats, mm 95
- Slot for wrench width, mm 50
- Connection thread 4.5” Metzke
- Inner tube assembly1626,20
RC 114×6000×М4,5 MH 1626.00
PART NUMBER: MH 1626.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name RC 102×6000×DR102 MH 1634.00
- Diameter D, mm 102
- Length L, mm 6000
- Pipe wall thickness B, mm 6,5
- Internal tube diameter C, mm 60
- Internal tube wall thickness A, mm 6,5
- Size across flats, mm 83
- Slot for wrench width, mm 40
- Connection thread DR102
- Inner tube assemblyMH 1634.20
RC 102×6000×DR102 MH 1634.00
PART NUMBER: MH 1634.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name RC 102×6000×DR115 MH 1642.00
- Diameter D, mm 114
- Length L, mm 6000
- Pipe wall thickness B, mm 9
- Internal tube diameter C, mm 60
- Internal tube wall thickness A, mm 6,5
- Size across flats, mm 95
- Slot for wrench width, mm 50
- Connection thread DR115
- Inner tube assemblyMH 1642.20
RC 102×6000×DR115 MH 1642.00
PART NUMBER: MH 1642.00
Check with the manager for the information about availability and delivery terms after submitting your application
