Drill bits QL60
Brief specifications

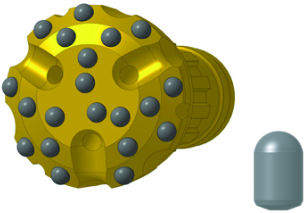

- Image
- Name KNSH-171 QL60 MH 4008.00
- Nominal drill bit diameter, mm 171
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 10 × Ø19
- Carbide (front) Hemispherical 9 × Ø16
- Flushing holes 2
- Length L, mm 351
- Weight, kg 25,1
KNSH-171 QL60 MH 4008.00
PART NUMBER: MH 4008.00
Check with the manager for the information about availability and delivery terms after submitting your application

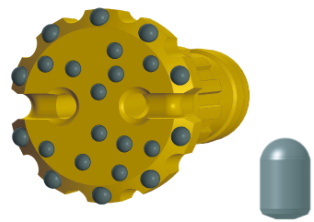

- Image
- Name KNSH-165 QL60 MH 517.00
- Nominal drill bit diameter, mm 165
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 10 × Ø16
- Carbide (front) Hemispherical 10 × Ø16
- Flushing holes 2
- Length L, mm 349
- Weight, kg 24.4
KNSH-165 QL60 MH 517.00
PART NUMBER: MH 517.00
Check with the manager for the information about availability and delivery terms after submitting your application

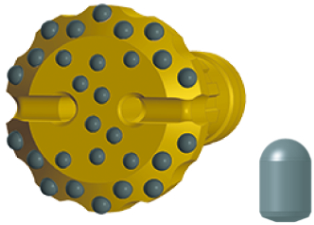

- Image
- Name KNSH-171 QL60 MH 527.00
- Nominal drill bit diameter, mm 171
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 10 × Ø16
- Carbide (front) Hemispherical 9 × Ø16
- Flushing holes 2
- Length L, mm 353
- Weight, kg 26.1
KNSH-171 QL60 MH 527.00
PART NUMBER: MH 527.00
Check with the manager for the information about availability and delivery terms after submitting your application

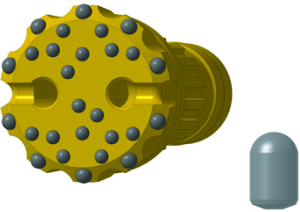

- Image
- Name KNSH-178 QL60 MH 523.00
- Nominal drill bit diameter, mm 178
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 10 × Ø16
- Carbide (front) Hemispherical 12 × Ø16
- Flushing holes 2
- Length L, mm 353
- Weight, kg 29
KNSH-178 QL60 MH 523.00
PART NUMBER: MH 523.00
Check with the manager for the information about availability and delivery terms after submitting your application

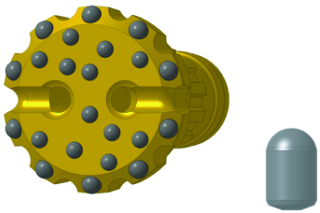

- Image
- Name KNSH-178 QL60 MH 4011.00
- Nominal drill bit diameter, mm 178
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 10 × Ø19
- Carbide (front) Hemispherical 12 × Ø16
- Flushing holes 2
- Length L, mm 351
- Weight, kg 26
KNSH-178 QL60 MH 4011.00
PART NUMBER: MH 4011.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-203 QL60 MH 537.00
- Nominal drill bit diameter, mm 203
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 10 × Ø19
- Carbide (front) Hemispherical 17 × Ø16
- Flushing holes 2
- Length L, mm 353
- Weight, kg 32.4
KNSH-203 QL60 MH 537.00
PART NUMBER: MH 537.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-203 QL60 MH 538.00
- Nominal drill bit diameter, mm 203
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 10 × Ø16
- Carbide (front) Hemispherical 17 × Ø16
- Flushing holes 2
- Length L, mm 353
- Weight, kg 31.9
KNSH-203 QL60 MH 538.00
PART NUMBER: MH 538.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-203 QL60 MH 1431.00
- Nominal drill bit diameter, mm 203
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 10 × Ø19
- Carbide (front) Hemispherical 12 × Ø16
- Flushing holes 2
- Length L, mm 353
- Weight, kg 28,7
KNSH-203 QL60 MH 1431.00
PART NUMBER: MH 1431.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-203 QL60 MH 596.00 (gauge reinforcement)
- Nominal drill bit diameter, mm 203
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 10 × Ø19
- Carbide (front) Hemispherical 17 × Ø16
- Flushing holes 2
- Length L, mm 361
- Weight, kg 32.4
KNSH-203 QL60 MH 596.00 (gauge reinforcement)
PART NUMBER: MH 596.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-171 QL60 MH 877.00
- Nominal drill bit diameter, mm 171
- Gauge angle, deg. 35 15
- Carbide (outer) Hemispherical 16 × Ø16
- Carbide (front) Hemispherical 5 × Ø18
- Flushing holes 2
- Length L, mm 353
- Weight, kg 26
KNSH-171 QL60 MH 877.00
PART NUMBER: MH 877.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-171 QL60 MH 879.00
- Nominal drill bit diameter, mm 171
- Gauge angle, deg. 35 15
- Carbide (outer) Hemispherical 16 × Ø19
- Carbide (front) Hemispherical 5 × Ø19
- Flushing holes 2
- Length L, mm 354
- Weight, kg 26
KNSH-171 QL60 MH 879.00
PART NUMBER: MH 879.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-171 QL60 MH 1421.00
- Nominal drill bit diameter, mm 171
- Gauge angle, deg. 35 / 15
- Carbide (outer) Hemispherical 10 × Ø19
- Carbide (front) Hemispherical 12 × Ø19
- Flushing holes 2
- Length L, mm 353
- Weight, kg 25,4
KNSH-171 QL60 MH 1421.00
PART NUMBER: MH 1421.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-165 QL60 MH 1422.00
- Nominal drill bit diameter, mm 165
- Gauge angle, deg. 35 / 15
- Carbide (outer) Hemispherical 10 × Ø22
- Carbide (front) Hemispherical 8 × Ø22
- Flushing holes 2
- Length L, mm 356
- Weight, kg 25,4
KNSH-165 QL60 MH 1422.00
PART NUMBER: MH 1422.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-171 QL60 MH 1423.00
- Nominal drill bit diameter, mm 171
- Gauge angle, deg. 35 / 15
- Carbide (outer) Hemispherical 12 × Ø18
- Carbide (front) Hemispherical 12 × Ø18
- Flushing holes 2
- Length L, mm 354
- Weight, kg 25,4
KNSH-171 QL60 MH 1423.00
PART NUMBER: MH 1423.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-190 QL60 MH 4005.00
- Nominal drill bit diameter, mm 190
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 10 × Ø19
- Carbide (front) Hemispherical 12 × Ø16
- Flushing holes 2
- Length L, mm 350
- Weight, kg 27,4
KNSH-190 QL60 MH 4005.00
PART NUMBER: MH 4005.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-186 QL60 MH 4020.00
- Nominal drill bit diameter, mm 186
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 10 × Ø19
- Carbide (front) Hemispherical 12 × Ø16
- Flushing holes 2
- Length L, mm 350
- Weight, kg 27,4
KNSH-186 QL60 MH 4020.00
PART NUMBER: MH 4020.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-203 QL60 MH 1428.00
- Nominal drill bit diameter, mm 203
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 18 × Ø19
- Carbide (front) Hemispherical 6 × Ø16
- Flushing holes 2
- Length L, mm 353
- Weight, kg 32,4
KNSH-203 QL60 MH 1428.00
PART NUMBER: MH 1428.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-203 QL60 MH 1427.00 (gauge reinforcement)
- Nominal drill bit diameter, mm 203
- Gauge angle, deg. 40
- Carbide (outer) Hemispherical 18 × Ø19
- Carbide (front) Hemispherical 9 × Ø16
- Flushing holes 2
- Length L, mm 353
- Weight, kg 32,4
KNSH-203 QL60 MH 1427.00 (gauge reinforcement)
PART NUMBER: MH 1427.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-165 QL60 MH 519.00
- Nominal drill bit diameter, mm 165
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 9 × Ø19
- Carbide (front) Hemispherical 9 × Ø16
- Flushing holes 3
- Length L, mm 353
- Weight, kg 25.4
KNSH-165 QL60 MH 519.00
PART NUMBER: MH 519.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-171 QL60 MH 518.00
- Nominal drill bit diameter, mm 171
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 9 × Ø18
- Carbide (front) Hemispherical 9 × Ø18
- Flushing holes 3
- Length L, mm 354
- Weight, kg 26.3
KNSH-171 QL60 MH 518.00
PART NUMBER: MH 518.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-178 QL60 MH 4021.00
- Nominal drill bit diameter, mm 178
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 9 × Ø18
- Carbide (front) Hemispherical 9 × Ø18
- Flushing holes 3
- Length L, mm 351
- Weight, kg 25,2
KNSH-178 QL60 MH 4021.00
PART NUMBER: MH 4021.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-165 QL60 MH 884.00
- Nominal drill bit diameter, mm 165
- Gauge angle, deg. 40 / 25
- Carbide (outer) Hemispherical 15 × Ø18
- Carbide (front) Hemispherical 5 × Ø18
- Flushing holes 3
- Length L, mm 353
- Weight, kg 25,3
KNSH-165 QL60 MH 884.00
PART NUMBER: MH 884.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-165 QL60 MH 891.00
- Nominal drill bit diameter, mm 165
- Gauge angle, deg. 40 / 25
- Carbide (outer) Hemispherical 12 × Ø22
- Carbide (front) Hemispherical 3 × Ø22
- Flushing holes 3
- Length L, mm 355
- Weight, kg 25
KNSH-165 QL60 MH 891.00
PART NUMBER: MH 891.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-171 QL60 MH 883.00
- Nominal drill bit diameter, mm 171
- Gauge angle, deg. 40 / 25
- Carbide (outer) Hemispherical 15 × Ø18
- Carbide (front) Hemispherical 5 × Ø18
- Flushing holes 3
- Length L, mm 353
- Weight, kg 25,8
KNSH-171 QL60 MH 883.00
PART NUMBER: MH 883.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-165 QL60 MH 1405.00
- Nominal drill bit diameter, mm 165
- Gauge angle, deg. 35
- Carbide (outer) Semi-ballistic 10 × Ø19
- Carbide (front) Semi-ballistic 9 × Ø16
- Flushing holes 2
- Length L, mm 350
- Weight, kg 25
KNSH-165 QL60 MH 1405.00
PART NUMBER: MH 1405.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-165 QL60 MH 4010.00 SPEEDBIT
- Nominal drill bit diameter, mm 165
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 10 × Ø16
- Carbide (front) Semi-ballistic 10 × Ø16
- Flushing holes 2
- Length L, mm 350,5
- Weight, kg 34,1
KNSH-165 QL60 MH 4010.00
PART NUMBER: MH 4010.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-165 QL60 MH 1414.00
- Nominal drill bit diameter, mm 165
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 10 × Ø22
- Carbide (front) Hemispherical 8 × Ø22
- Flushing holes 2
- Length L, mm 356
- Weight, kg 25,7
KNSH-165 QL60 MH 1414.00
PART NUMBER: MH 1414.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-165 QL60 MH 1415.00
- Nominal drill bit diameter, mm 165
- Gauge angle, deg. 35 / 10
- Carbide (outer) hemisphere 9 × Ø22
- Carbide (front) Semi-ballistic 8 × Ø22
- Flushing holes 3
- Length L, mm 353
- Weight, kg 26
KNSH-165 QL60 MH 1415.00
PART NUMBER: MH 1415.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-171 QL60 MH 1420.00
- Nominal drill bit diameter, mm 171
- Gauge angle, deg. 35 / 10
- Carbide (outer) Hemispherical 10 × Ø22
- Carbide (front) Hemispherical 8 × Ø22
- Flushing holes 2
- Length L, mm 356
- Weight, kg 25,7
KNSH-171 QL60 MH 1420.00
PART NUMBER: MH 1420.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-165 QL60 MH 1415.00
- Nominal drill bit diameter, mm 165
- Gauge angle, deg. 35
- Carbide (outer) hemisphere 14 × Ø22
- Carbide (front) hemisphere 2 × Ø22
- Flushing holes 2
- Length L, mm 355
- Weight, kg 25,7
KNSH-165 QL60 MH 1416.00
PART NUMBER: MH 1416.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-171 QL60 MH 1425.00
- Nominal drill bit diameter, mm 171
- Gauge angle, deg. 35
- Carbide (outer) semi-ballistics 18 × Ø16
- Carbide (front) semi-ballistics 6 × Ø14, semi-ballistics 6 × Ø16
- Flushing holes 2
- Length L, mm 354
- Weight, kg 25,7
KNSH-171 QL60 MH 1425.00
PART NUMBER: MH 1425.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-203 QL60 MH 1429.00
- Nominal drill bit diameter, mm 203
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 18 × Ø19
- Carbide (front) Hemispherical 9 × Ø16
- Flushing holes 2
- Length L, mm 353
- Weight, kg 30,5
KNSH-203 QL60 MH 1429.00
PART NUMBER: MH 1429.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-203 QL60 MH 882.00
- Nominal drill bit diameter, mm 203
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 12 × Ø19
- Carbide (front) Hemispherical 18 × Ø18
- Flushing holes 2
- Length L, mm 354
- Weight, kg 49,6
KNSH-203 QL60 MH 882.00
PART NUMBER: MH 882.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-203 QL60 MH 539.00 (gauge reinforcement)
- Nominal drill bit diameter, mm 203
- Gauge angle, deg. 40
- Carbide (outer) Hemispherical 9 × Ø19
- Carbide (front) Hemispherical 6 × Ø19, 3 × Ø18
- Flushing holes 3
- Length L, mm 362
- Weight, kg 32.2
KNSH-203 QL60 MH 539.00 (gauge reinforcement)
PART NUMBER: MH 539.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-250 QL60 MH 552.00
- Nominal drill bit diameter, mm 250
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 10 × Ø18
- Carbide (front) Hemispherical 18 × Ø18
- Flushing holes 2
- Length L, mm 362
- Weight, kg 42.8
KNSH-250 QL60 MH 552.00
PART NUMBER: MH 552.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name Valve MH 520.02
Valve MH 520.02
PART NUMBER: MH 520.02
Check with the manager for the information about availability and delivery terms after submitting your application
