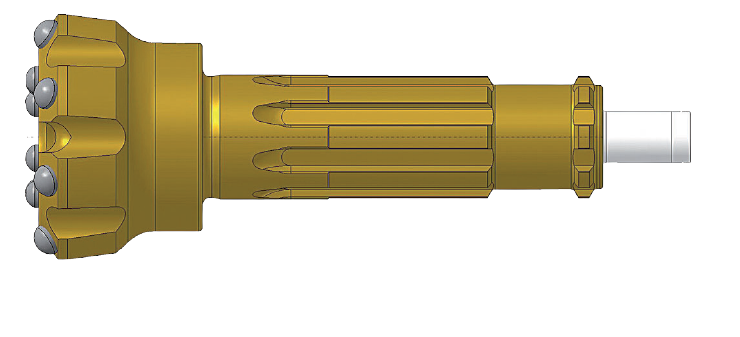

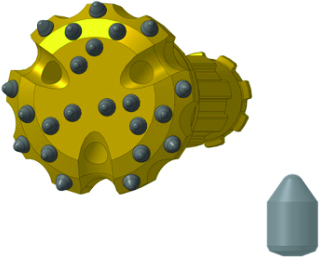

Drill bits DHD340A
Brief specifications
- Image
- Name KNSH-105 DHD340A MH 528.00
- Nominal drill bit diameter, mm 105
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical
- Carbide (front) Hemispherical
- Flushing holes 2
- Length L, mm 301
- Weight, kg 8.9
KNSH-105 DHD340A MH 528.00
PART NUMBER: MH 528.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-110 DHD340A MH 525.00
- Nominal drill bit diameter, mm 110
- Gauge angle, deg. 35
- Carbide (outer) 8 × Ø14
- Carbide (front) 7 × Ø13
- Flushing holes 2
- Length L, mm 301
- Weight, kg 9.1
KNSH-110 DHD340A MH 525.00
PART NUMBER: MH 525.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-110 DHD340A MH 563.00
- Nominal drill bit diameter, mm 110
- Gauge angle, deg. 35
- Carbide (outer) 8 × Ø16
- Carbide (front) 6 × Ø16
- Flushing holes 2
- Length L, mm 301
- Weight, kg 9.5
KNSH-110 DHD340A MH 563.00
PART NUMBER: MH 563.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-110 DHD340A MH 578.00
- Nominal drill bit diameter, mm 110
- Gauge angle, deg. 35
- Carbide (outer) Semi-ballistic
- Carbide (front) Semi-ballistic
- Flushing holes 2
- Length L, mm 301
- Weight, kg 9.3
KNSH-110 DHD340A MH 578.00
PART NUMBER: MH 578.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-115 DHD340A MH 4009.00
- Nominal drill bit diameter, mm 115
- Gauge angle, deg. 35
- Carbide (outer) hemisphere 8хØ14
- Carbide (front) hemisphere 7хØ14
- Flushing holes 2
- Length L, mm 288,5
- Weight, kg 8,4
KNSH-115 DHD340A MH 4009.00
PART NUMBER: MH 4009.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-120 DHD340A MH 1407.00
- Nominal drill bit diameter, mm 120
- Gauge angle, deg. 35
- Carbide (outer) hemisphere 8хØ14
- Carbide (front) hemisphere 8хØ14
- Flushing holes 2
- Length L, mm 301
- Weight, kg 10
KNSH-120 DHD340A MH 1407.00
PART NUMBER: MH 1407.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-130 DHD340A MH 4001.00
- Nominal drill bit diameter, mm 130
- Gauge angle, deg. 35
- Carbide (outer) hemisphere 8хØ16
- Carbide (front) hemisphere 7хØ14
- Flushing holes 2
- Length L, mm 288,7
- Weight, kg 9,3
KNSH-130 DHD340A MH 4001.00
PART NUMBER: MH 4001.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-115 DHD340A MH 572.00 SPEEDBIT
- Nominal drill bit diameter, mm 115
- Gauge angle, deg. 35
- Carbide (outer) hemisphere 7хØ16
- Carbide (front) semiballistics 4хØ14 / 2хØ14
- Flushing holes 2
- Length L, mm 301
- Weight, kg 9,2
KNSH-115 DHD340A MH 572.00 SPEEDBIT
PART NUMBER: MH 572.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-110 DHD340A MH 4015.00
- Nominal drill bit diameter, mm 110
- Gauge angle, deg. 35
- Carbide (outer) semiballistics 8хØ14
- Carbide (front) semiballistics 6хØ14
- Flushing holes 2
- Length L, mm 288,7
- Weight, kg 8,2
KNSH-110 DHD340A MH 4015.00
PART NUMBER: MH 4015.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-110 DHD340A MH 4014.00
- Nominal drill bit diameter, mm 110
- Gauge angle, deg. 35
- Carbide (outer) hemisphere 8хØ16
- Carbide (front) hemisphere 6хØ16
- Flushing holes 2
- Length L, mm 289
- Weight, kg 8,4
KNSH-110 DHD340A MH 4014.00
PART NUMBER: MH 4014.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-110 DHD340A MH 4016.00
- Nominal drill bit diameter, mm 110
- Gauge angle, deg. 35
- Carbide (outer) semiballistics 8хØ16
- Carbide (front) semiballistics 6хØ16
- Flushing holes 2
- Length L, mm 290
- Weight, kg 8,4
KNSH-110 DHD340A MH 4016.00
PART NUMBER: MH 4016.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-110 DHD340A MH 4018.00
- Nominal drill bit diameter, mm 110
- Gauge angle, deg. 40
- Carbide (outer) semiballistics 8хØ16
- Carbide (front) semiballistics 6хØ16
- Flushing holes 2
- Length L, mm 290
- Weight, kg 8,5
KNSH-110 DHD340A MH 4018.00
PART NUMBER: MH 4018.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-130 DHD340A MH 4003.00
- Nominal drill bit diameter, mm 130
- Gauge angle, deg. 35
- Carbide (outer) hemisphere 8хØ16
- Carbide (front) semiballistics 7хØ14
- Flushing holes 2
- Length L, mm 288,7
- Weight, kg 9,3
KNSH-130 DHD340A MH 4003.00
PART NUMBER: MH 4003.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-130 DHD340A MH 4002.00
- Nominal drill bit diameter, mm 130
- Gauge angle, deg. 40 / 20
- Carbide (outer) conical 9хØ13
- Carbide (front) conical 11хØ13
- Flushing holes 3
- Length L, mm 291
- Weight, kg 9,3
KNSH-130 DHD340A MH 4002.00
PART NUMBER: MH 4002.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-130 DHD340A MH 881.00
- Nominal drill bit diameter, mm 130
- Gauge angle, deg. 40 / 20
- Carbide (outer) ballistics 9хØ12
- Carbide (front) ballistics 13хØ12
- Flushing holes 3
- Length L, mm 303
- Weight, kg 9,5
KNSH-130 DHD340A MH 881.00
PART NUMBER: MH 881.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- NameValve MH 500.04
Valve MH 500.04
PART NUMBER: MH 500.04
Check with the manager for the information about availability and delivery terms after submitting your application
