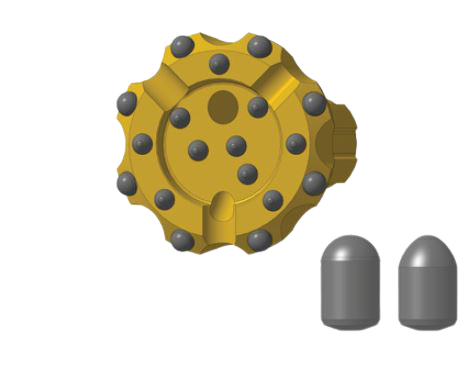

CIR-110 Drilling bits
Brief specifications
- NameKNSH-130 CIR110 МH 592.00 SPEEDBIT
- Diameter, mm.130
- Periphery inclination angle, deg.40
- Carbide (periphery)hemisphere 8xØ14
- Carbide (front)semiballistics 10хØ12
- Flushing holes2
- Length, mm.209,4
- Weight, kg.7,3
KNSH-130 CIR110 МH 592.00 SPEEDBIT
PART NUMBER: МH 592.00
Check with the manager for the information about availability and delivery terms after submitting your application
- NameKNSH-130 CIR110 DSHSk МH 470.00
- Diameter, mm.130
- Periphery inclination angle, deg.20 / 45
- Carbide (periphery)conical 6 × Ø14
- Carbide (front)conical 3 × Ø13, conical 4 × Ø13
- Flushing holes2
- Length, mm.213
- Weight, kg.7,9
KNSH-130 CIR110 DSHSk МH 470.00
PART NUMBER: МH 470.00
Check with the manager for the information about availability and delivery terms after submitting your application
- NameKNSH-130 CIR110 DSHSb МH 471.00
- Diameter, mm.130
- Periphery inclination angle, deg.15 / 45
- Carbide (periphery)conical 8 × Ø14
- Carbide (front)conical 4 × Ø13, conical 4 × Ø12
- Flushing holes2
- Length, mm.212
- Weight, kg.8,2
KNSH-130 CIR110 DSHSb МH 471.00
PART NUMBER: МH 471.00
Check with the manager for the information about availability and delivery terms after submitting your application
