Drill bits for hammer P-130-4.5R; P-130-4.5RRB, roller connection
Brief specifications

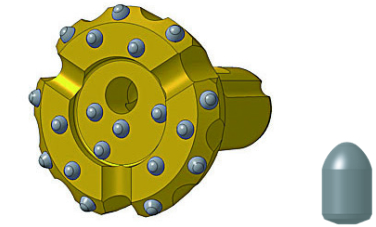

- Image
- NameKNSH-140BS/130P МH 177.00
- Nominal diameter of the bit, mm.140
- Periphery inclination angle, deg.35
- Carbide (periphery)semisphere 8хØ14
- Carbide (front)semisphere 8хØ14
- Flushing holes1
- Length, mm.208
- Weight, kg.9,1
KNSH-140BS/130P МH 177.00
PART NUMBER: MH 177.00
Check with the manager for the information about availability and delivery terms after submitting your application

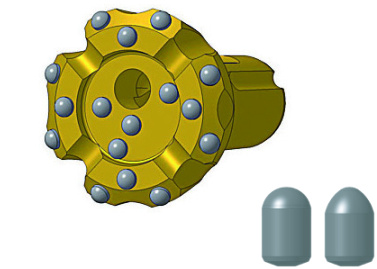

- Image
- NameKNSH-140BKE/130P МH 178.00
- Nominal diameter of the bit, mm.140
- Periphery inclination angle, deg.35
- Carbide (periphery)semiballistics 8хØ14
- Carbide (front)semiballistics 8хØ14
- Flushing holes1
- Length, mm.208
- Weight, kg.9,1
KNSH-140BKE/130P МH 178.00
PART NUMBER: MH 178.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- NameKNSH-145BS/130P МH 378.00
- Nominal diameter of the bit, mm.145
- Periphery inclination angle, deg.40
- Carbide (periphery)semisphere 8хØ16
- Carbide (front 1)semisphere 4хØ16
- Carbide (front 2)semisphere 4хØ14
- Flushing holes1
- Length, mm.213
- Weight, kg10
KNSH-145BS/130P МH 378.00
PART NUMBER: MH 378.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- NameKNSH-152BS/130P МH 414.00
- Nominal diameter of the bit, mm.152
- Periphery inclination angle, deg.40
- Carbide (periphery)semisphere 8хØ16
- Carbide (front 1)semisphere 4хØ16
- Carbide (front 2)semisphere 4хØ14
- Flushing holes1
- Length, mm.213
- Weight, kg10,2
KNSH-152BS/130P МH 414.00
PART NUMBER: MH 414.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- NameKNSH-160KE/130P МH 189.00
- Nominal diameter of the bit, mm.160
- Periphery inclination angle, deg.40
- Carbide (periphery)semisphere 9хØ14
- Carbide (front)semisphere 10хØ14
- Flushing holes1
- Length, mm.219
- Weight, kg.11,6
KNSH-160KE/130P МH 189.00
PART NUMBER: MH 189.00
Check with the manager for the information about availability and delivery terms after submitting your application
