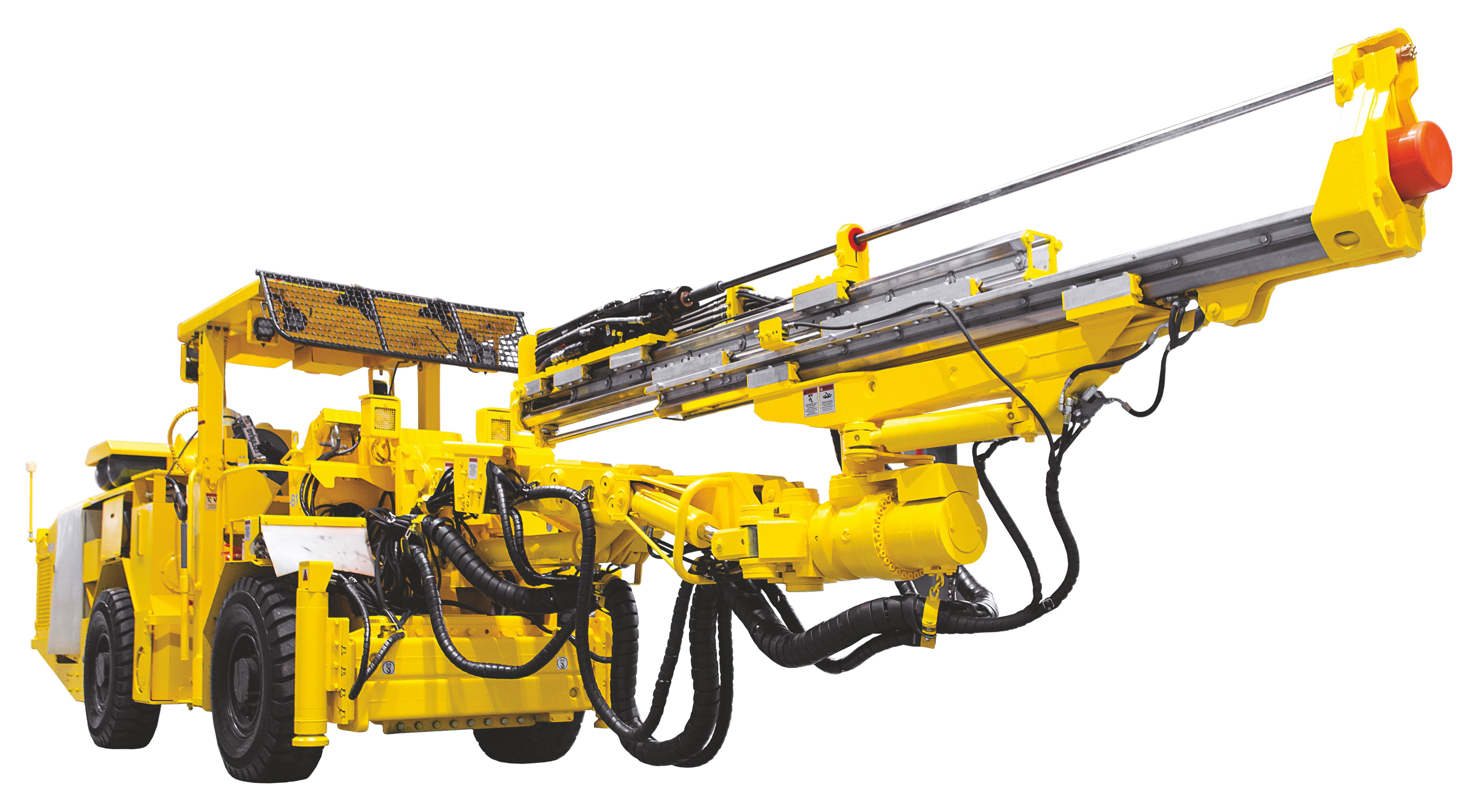

DF-B1 underground tunneling hydraulic drilling rig
Brief specifications
- Minimum drift size (width × height), m3 × 3
- Nominal borehole diameter, mm43...64
- Maximum cross-section of the workings, m240 (5,8 х 7,2)
- Minimum width of a T-junction with a telescopic feeder 6/12, m3,6
- Maximum travel speed, km/h12
- Rig weight, not more than, kg16-18 000
- Maximum borehole depth (monolithic feeder 16), mm4615
- Overall dimensions in transport position
- Length (for 6/12), mm11900
- Width, mm1870
- Height, mm2100-3100
- Hydraulic drifterHLX5-МH
- Impact power of the hydraulic drifter, kW20
DF-B1 underground tunneling hydraulic drilling rig
PART NUMBER:
Check with the manager for the information about availability and delivery terms after submitting your application
Description
Electrohydraulic drilling rig is designed for drilling horizontal, vertical and inclined boreholes with a diameter of 43-64 mm in tunnels and excavations during underground mining of ore deposits. The rig is used for high-performance tunneling and excavations with a cross-section of up to 40 m2, as well as for drilling boreholes for anchoring.
