Adapters for reverse circulation (RC) drilling

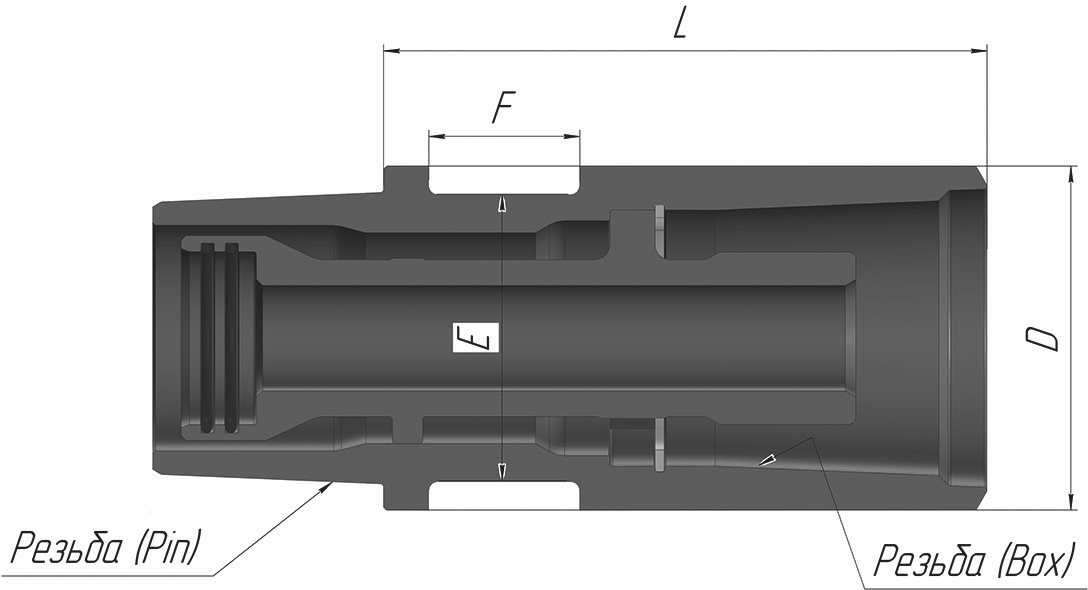

Brief specifications
- Name Adapter D117 × DR102 (P) × Metzke 4 1/2 (B) MH 1732.00
- Connection thread (outer) DR102
- Connection thread (inner) 4,5” Metzke
- Diameter, mm 117
- Length L, mm 122,4
- E/F, мм105/50
- Drill pipe subMH 1732.10
Adapter D117 × DR102 (P) × Metzke 4 1/2 (B) MH 1732.00
PART NUMBER: MH 1732.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D102 × DR102 (B) × Metzke 4 (P) MH 1735.00
- Connection thread (outer) DR102
- Connection thread (inner) 4,5” Metzke
- Diameter, mm 102
- Length L, mm 181
- E/F, мм83/40
- Drill pipe subMH 1735.02
Adapter D102 × DR102 (B) × Metzke 4 (P) MH 1735.00
PART NUMBER: MH 1735.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D102 × Metzke 4 (B) × Metzke 4 (P) MH 1736.00
- Connection thread (outer) Metzke 4"
- Connection thread (inner) Metzke 4"
- Diameter, mm 102
- Length L, mm 195
- E/F, мм83/40
- Drill pipe subMH 1736.02
Adapter D102 × Metzke 4 (B) × Metzke 4 (P) MH 1736.00
PART NUMBER: MH 1736.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name D122 × DR122 (B) × Metzke 4 (P) MH 1742.00
- Connection thread (outer) DR102
- Connection thread (inner) Metzke 4"
- Diameter, mm 122
- Length L, mm 181
- E/F, мм83/40
- Drill pipe subMH 1735.02
Adapter D122 × DR122 (B) × Metzke 4 (P) MH 1742.00
PART NUMBER: MH 1742.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D102 × Metzke 4 (B) × Metzke 4 (P) MH 1743.00
- Connection thread (outer) Metzke 4"
- Connection thread (inner) Metzke 4"
- Diameter, mm 122
- Length L, mm 195
- E/F, мм83/40
- Drill pipe subMH 1736.02
Adapter D102 × Metzke 4 (B) × Metzke 4 (P) MH 1743.00
PART NUMBER: MH 1743.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D102 × Remet 4 (P, B) MH 1755.00
- Connection thread (outer) Remet 4"
- Connection thread (inner) Remet 4"
- Diameter, mm 102
- Length L, mm 199,6
- E/F, мм88/40
- Drill pipe subMH 1755.02
Adapter D102 × Remet 4 (P, B) MH 1755.00
PART NUMBER: MH 1755.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D114 × Metzke 4,5 (B) × DR115 (P) MH 1757.00
- Connection thread (outer) 4,5" Metzke
- Connection thread (inner) DR115
- Diameter, mm 114
- Length L, mm 202,7
- E/F, мм95/50
- Drill pipe subMH 1757.02
Adapter D114 × Metzke 4,5 (B) × DR115 (P) MH 1736.00
PART NUMBER: MH 1757.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D114 × Metzke 4,5 (B) × Metzke 4,5 (P) MH 1762.00
- Connection thread (outer) 4,5" Metzke
- Connection thread (inner) 4,5" Metzke
- Diameter, mm 114
- Length L, mm 200
- E/F, мм95/50
- Drill pipe subMH 1762.02
Adapter D114 × Metzke 4,5 (B) × Metzke 4,5 (P) MH 1762.00
PART NUMBER: MH 1762.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D132 × Metzke 4,5 (B) × Remet 4,5 (P) MH 1764.00
- Connection thread (outer) Remet 4,5"
- Connection thread (inner) Metzke 4,5"
- Diameter, mm 132
- Length L, mm 203
- E/F, мм103/50
- Drill pipe subMH 1764.02
Adapter D132 × Metzke 4,5 (B) × Remet 4,5 (P) MH 1764.00
PART NUMBER: MH 1764.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D122 × Metzke 4,5 (B) × Metzke 4,5 (P) MH 1776.00
- Connection thread (outer) 4,5" Metzke
- Connection thread (inner) 4,5" Metzke
- Diameter, mm 122
- Length L, mm 200
- E/F, мм95/50
- Drill pipe subMH 1776.01
Adapter D122 × Metzke 4,5 (B) × Metzke 4,5 (P) MH 1776.00
PART NUMBER: MH 1776.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D122 × Remet 4,5 (B) × Metzke 4,5 (P) MH 1775.00
- Connection thread (outer) Metzke 4,5"
- Connection thread (inner) Remet 4,5"
- Diameter, mm 122
- Length L, mm 200
- E/F, мм95/50
- Drill pipe subМХ 1775.01
Adapter D122 × Remet 4,5 (B) × Metzke 4,5 (P) MH 1775.00
PART NUMBER: MH 1775.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D122 × Remet 4 (B) × Metzke 4 (P) MH 1777.00
- Connection thread (outer) Metzke 4"
- Connection thread (inner) Remet 4"
- Diameter, mm 122
- Length L, mm 200
- E/F, мм83/40
- Drill pipe subМХ 1777.01
Adapter D122 × Remet 4 (B) × Metzke 4 (P) MH 1777.00
PART NUMBER: MH 1777.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D122 × DR115 (B) × Remet 4,5 (P) MH 1732.00
- Connection thread (outer) Remet 4,5"
- Connection thread (inner) DR 115
- Diameter, mm 122
- Length L, mm 183
- E/F, мм103/50
- Drill pipe subMH 1783.02
Adapter D122 × DR115 (B) × Remet 4,5 (P) MH 1783.00
PART NUMBER: MH 1783.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D102 × Remet 4 (B) × Metzke 4 (P) MH 1787.00
- Connection thread (outer) Metzke 4"
- Connection thread (inner) Remet 4"
- Diameter, mm 102
- Length L, mm 200
- E/F, мм83/40
- Drill pipe subMH 1777.01
Adapter D102 × Remet 4 (B) × Metzke 4 (P) MH 1787.00
PART NUMBER: MH 1787.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D122 × DR115 (B) × Metzke 4 (P) MH 1812.00
- Connection thread (outer) Metzke 4"
- Connection thread (inner) DR115
- Diameter, mm 122
- Length L, mm 181
- E/F, мм95/40
- Drill pipe subMH 1812.01
Adapter D122 × DR115 (B) × Metzke 4 (P) MH 1812.00
PART NUMBER: MH 1812.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D122 × DR115 (B) × Remet 4 (P) MH 1821.00
- Connection thread (outer) Remet 4"
- Connection thread (inner) DR115
- Diameter, mm 122
- Length L, mm 181
- E/F, мм95/50
- Drill pipe subMH 1821.01
Adapter D122 × DR115 (B) × Remet 4 (P) MH 1821.00
PART NUMBER: MH 1821.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D122 × DR115 (B) × Remet 4 (P) MH 1821.00
- Connection thread (outer) Remet 4"
- Connection thread (inner) DR102
- Diameter, mm 122
- Length L, mm 181
- E/F, мм83/50
- Drill pipe subMH 1822.02
Adapter D122 × DR102 (B) × Remet 4 (P) MH 1822.00
PART NUMBER: MH 1822.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D114 × DR115 (B) × DR115 (P) MH 1827.00
- Connection thread (outer) DR115
- Connection thread (inner) DR115
- Diameter, mm 114
- Length L, mm 217
- E/F, мм95/50
- Drill pipe subMH 1827.02
Adapter D114 × DR115 (B) × DR115 (P) MH 1827.00
PART NUMBER: MH 1827.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Name Adapter D114 × DR115 (B) × Metzke 4,5 (P) MH 1828.00
- Connection thread (outer) Metzke 4,5"
- Connection thread (inner) DR115
- Diameter, mm 114
- Length L, mm 217
- E/F, мм95/50
- Drill pipe subMH 1828.02
Adapter D114 × DR115 (B) × Metzke 4,5 (P) MH 1828.00
PART NUMBER: MH 1828.00
